In the fight against antibiotic resistance, accurate measurement of antimicrobial activity is crucial. The Antibiotic Zone Reader is a sophisticated instrument that revolutionizes how we perform antibiotic potency testing. With its ability to measure inhibition zone diameters from 0 to 35 mm with a high level of precision, this device is essential in pharmaceutical industries, medical research, and animal health for assessing antibiotic potency.
What is an Antibiotic Zone Reader?

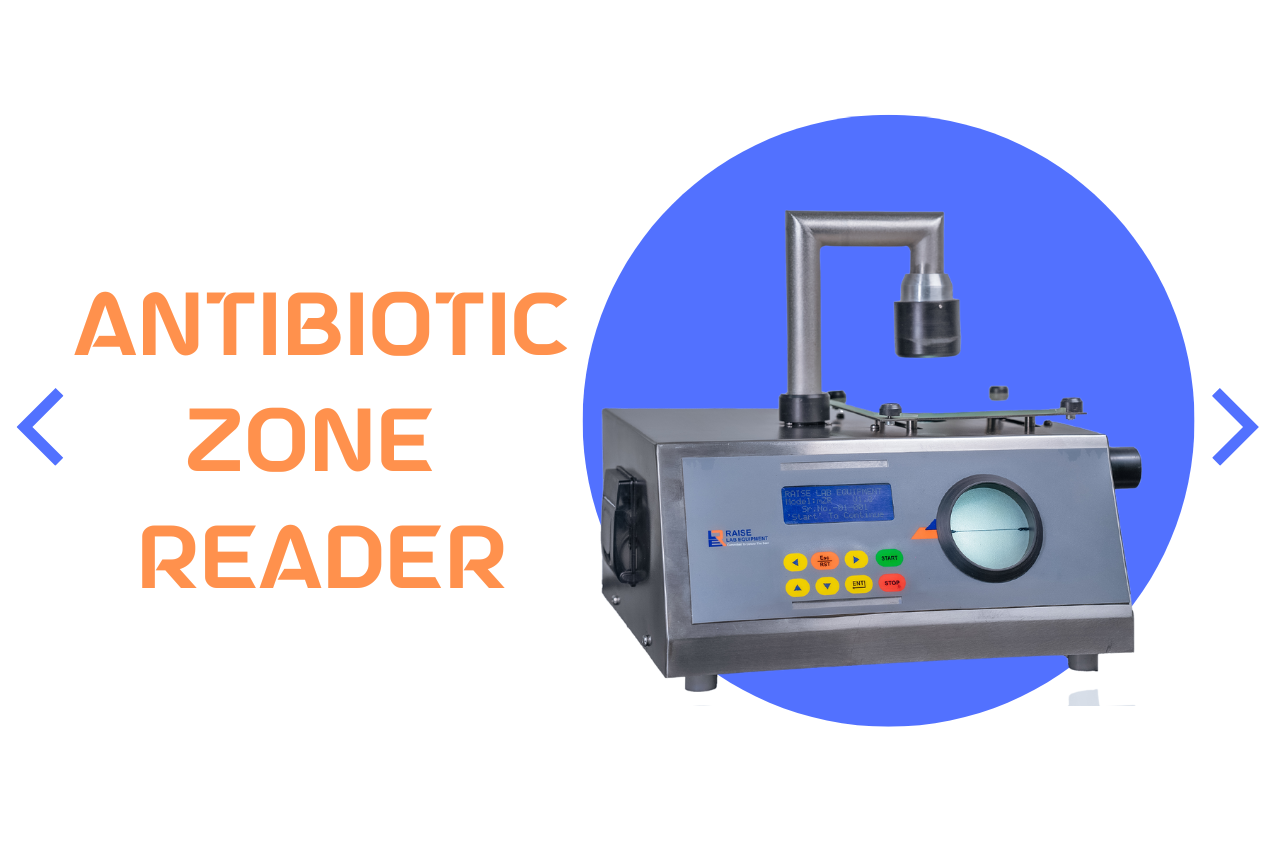

The RAZ-1C Antibiotic Zone Reader is a tool used to measure the zones of inhibition on agar plates to determine the effectiveness of antibiotics against bacteria. It works by shining a light through the agar plate and analyzing the pattern of light that is transmitted. The diameter of the clear zone around an antibiotic disc is measured, and this information is used to assess the antibiotic’s potency.
Benefits of Using an Antibiotic Zone Reader
Using an Antibiotic Zone Reader offers several benefits, including:
- Accurate measurement of inhibition zone diameters: The RAZ-1C Antibiotic Zone Reader provides precise measurements of inhibition zone diameters, which are critical for determining the effectiveness of antibiotics.
- Rapid testing: The RAZ-1C Antibiotic Zone Reader can quickly measure inhibition zone diameters, which helps to expedite the drug testing process.
- Reproducible results: The RAZ-1C Antibiotic Zone Reader provides consistent and reproducible results, which is essential for reliable drug testing.
- Compliance with cGMP standards: The RAZ-1C Antibiotic Zone Reader is designed to comply with cGMP standards, which ensures that it is accurate and reliable for use in pharmaceutical settings.
Measuring Inhibition Zones
The RAZ-1C Antibiotic Zone Reader uses a light transmission method to measure inhibition zones. The agar plate is placed on the platform of the reader, and a light beam is shone through the agar plate from the bottom. The light beam is then collected and analyzed by a sensor, which determines the amount of light that is transmitted through the plate. The clear zone around the antibiotic disc appears as a dark spot on the agar plate, and the diameter of this spot is measured by the sensor.
The diameter of the inhibition zone is then compared to the CLSI standards to determine the antibiotic’s potency. The CLSI standards provide breakpoints for categorizing bacterial responses as Susceptible, Intermediate, or Resistant. For example, an inhibition zone of 18 mm or greater for amoxicillin is considered Susceptible, while an inhibition zone of less than 18 mm is considered Resistant.
Here are the steps involved in measuring inhibition zones with an antibiotic zone reader:
- Prepare the agar plates: The agar plates must be prepared according to the manufacturer’s instructions. This typically involves inoculating the plates with a known concentration of bacteria.
- Apply the antibiotic discs: The antibiotic discs are placed on the agar plate, typically in a standardized pattern. The distance between the discs should be the same for all plates.
- Incubate the plates: The plates are then incubated at the appropriate temperature for the specified time. The incubation time varies depending on the type of bacteria being tested.
- Measure the inhibition zones: The plates are placed on the antibiotic zone reader and the diameter of the inhibition zones is measured.
- Interpret the results: The diameter of the inhibition zones is compared to the CLSI standards to determine the antibiotic’s potency.
- Document the results: The results of the test are documented in a laboratory notebook.
Applications of an Antibiotic Zone Reader
The RAZ-1C Antibiotic Zone Reader is used in a variety of applications, including:
- Pharmaceutical drug development: The RAZ-1C Antibiotic Zone Reader is used to assess the potency of new and existing antibiotics during drug development.
- Microbiological research: The RAZ-1C Antibiotic Zone Reader is used to study the effects of antibiotics on bacteria in research settings.
- Animal health: The RAZ-1C Antibiotic Zone Reader is used to test the potency of antibiotics in animals.
Analytical Data of Antibiotic Zone Reader
The RAZ-1C Antibiotic Zone Reader provides valuable analytical data, including:
- Inhibition zone diameter: The diameter of the clear zone around an antibiotic disc is measured, which indicates the antibiotic’s potency.
- CLSI (Clinical and Laboratory Standards Institute) standards: The RAZ-1C Antibiotic Zone Reader provides interpretations based on CLSI standards, which categorize bacterial responses as Susceptible, Intermediate, or Resistant.
Below is an HTML table format representation of typical analytical data you might encounter when using an antibiotic zone reader:
| Antibiotic | Inhibition Zone Diameter (mm) | Interpretation | CLSI Standards |
| Amoxicillin | 17 – 22 | Susceptible (S) | ≥ 20 |
| Ciprofloxacin | 25 – 30 | Susceptible (S) | ≥ 21 |
| Erythromycin | 13 – 18 | Intermediate (I) | 15 – 18 |
| Vancomycin | 14 – 20 | Resistant (R) | ≤ 14 |
Conclusion
The RAZ-1C Antibiotic Zone Reader is an essential tool for evaluating antibiotic materials and ensuring the effectiveness of antimicrobial therapy. Its ability to provide accurate and precise measurements of inhibition zone diameters makes it a valuable asset in pharmaceutical industries, medical research, and animal health.
